Two-way dehumidification

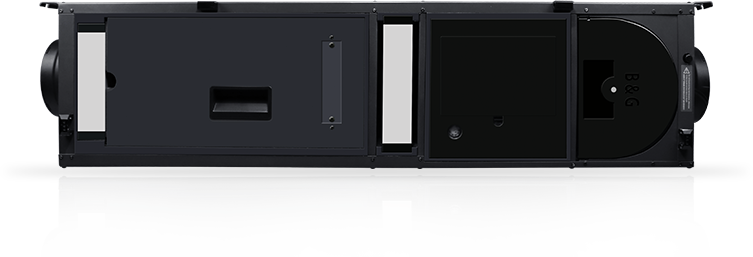

BGD4001/BGD6001(S)
The Bruglin Fresh Air System lets you breathe!

The Bruglin two-way dehumidification fresh air machine has a maximum air volume of 630m3/h*, with a minimum noise level of 40dB*,
Let you dehumidify and mold, and enjoy fresh and comfortable without feeling it.

  • Maximum 630m3/h*
    Fresh air volume
  • High-precision horizontal compressor
  • High quality multi-row copper tube condenser
  • Modular design
  • Autonomous full conversion double s DC brushless motor
  • Precision drainage lift pump
  • D type HEPA buffer filter
  • Self-power failure protection system
*630m3/h is the measured data of the BGD 6001(S) model laboratory
*40dB is measured by BGD 4001 model laboratory
24 hours continuous air supply, the home air is always new
Bruglin two-way dehumidification fresh air machine, smart operation one button to get, pre-set indoor humidity value,
Give everything to Bruglin and let you enjoy your breath. Not only that, Bruglin is still a new fan,
Dehumidify the fresh air to protect your health, and continue to supply air for 24 hours, so that the air in the home is always new.
Layers of filtration to enjoy a healthy new wind
The Bruglin Fresh Air System draws outdoor oxygen-containing air into the room and sends fresh air into the room through a multi-layer filtration system.
At the same time, the indoor circulating air is cleaned 2 times at any time to ensure that the air purification effect reaches the European standard H13 level.
99% purification efficiency
Using the world's top air purification technology, the four-layer high-efficiency filtration of the gas entering the room; effectively remove harmful substances such as PM2.5, germs, formaldehyde, benzene, and the purification efficiency is as high as 99%.
Independent full-frequency double EC motor
Synchronous stepless intelligent speed regulation can accelerate air cyclone flow, Three-dimensional cycle to make the indoor temperature more balanced,
At the same time, taking into account energy saving and consumption, the life expectancy is up to 180,000 hours. Quiet operation, energy saving, and lifetime warranty.
New environmentally friendly plastic materials, insulation and noise reduction
The interior of the fan is filled with a new foam plastic EPP, and the unique closed-cell structure has excellent thermal insulation properties.
At the same time, it has efficient noise isolation.
Current：Product > Two-waydehumidification > Technology
Modular design for easy maintenance and overhaul
All components are modular in design and can be extracted independently.
The innovative design of the motor module can also be disassembled independently, which further simplifies the after-sales work of the fan.
Overhaul and replacement of parts no longer needs to destroy the decoration of the house, making maintenance more convenient and efficient.
Primary filter module
The first effect is to filter large particles of dust, batt, insects, etc., the first level of health guards.
The golden ratio pleating process, the open structure increases the amount of filtration per unit area,
The purification efficiency greatly increases the wind resistance and can effectively reduce the wind noise.
At the same time, it has high efficiency and air permeability.
Condenser/compressor
Compression module
  • The temperature of the humid air will drop drastically after passing through the main evaporator,
    Air humidity is in an oversaturated state,
    Excess water vapor is precipitated as condensed water,
    Condensed on the fins of the evaporator.
  • The dehumidification module uses a high quality horizontal compressor,
    Convenient for limited ceiling installation,
    Simultaneously set up multiple sound insulation and vibration isolation measures,
    Reduce the noise generated by the operation.
Precision drainage lift pump
Precision drainage lift pump, once the water level of the water storage tray reaches the set value,
The lift pump self-starts drainage to solve the problem of dewatering the basement drainage of the dehumidification mainframe,
At the same time, due to the high lift of the lift pump,
It can avoid the construction trouble caused by the installation height and the risk of damaging the ceiling,
Make the host more worry-free to install and use.
Carbonized activated carbon filter
Using high iodine value modified activated carbon,
Bonded to the microporous filter steel network after chemical treatment,
The design principle is more scientific,
Adsorption capacity for small molecular impurities,
The adsorption rate is significantly higher than conventional activated carbon.
It can strongly adsorb volatile organic compounds such as formaldehyde, toluene, TVOC/total, and is not easy to desorb.
Using padding,
Increase the crushing resistance of activated carbon while increasing the adsorption area and reducing wind resistance.
D type HEPA buffer filter
The industry's first patented "D" type HEPA structure, high dust holding capacity, long service life,
Efficient filtration of PM2.5 reduces seal noise. Its HEPA deployment area is 4 to 5 times that of an ordinary high efficiency filter.
17-digit security code
Each machine has an independent security code that is unique and cannot be copied.
Each security code can be checked against Brugreen's official website to further protect the authentic rights.
Current：Product > Two-waydehumidification > Intelligent
4-inch full smart touch panel
4-inch full smart touch giant screen controller, simple, stylish and easy to operate
Real-time display of current weather conditions, timely reminding of various life indexes
Real-time monitoring of indoor and outdoor air data, dual monitoring to ensure that family safety is more convenient, automatic operation is more secure
Accurate and detailed data display
The white data on black shows that it is simple and not tonal.
Indoor PM2.5, CO2, TVOC index, outdoor temperature, indoor temperature, indoor humidity, filter reminder,
Detailed and accurate data such as mode selection shows that the new wind is “visible”.
The touch-screen control of the screen allows you to adjust it with a single click, making it easy for your family to operate.
Variety of fresh air modes
According to your own living habits, the automatic, manual, and custom modes are freely set.
Personalized program customization needs, giving you a unique new style.
Current：Product > Two-waydehumidification > Performance

BGD series parameters

  • machine type
    BGD4001
    BGP6001(S)
  • Size (mm)
    1130*600*280
    1130*650*280
  • Filtration (H)
    European standard H13
    European standard H13
  • Dehumidification amount (L/d)
    60
    80
  • Power (w)
    900
    1100
  • Air volume (m3/h)
    420
    630
  • Noise (dB)
    40
    42
  • Weight (kg)
    52
    58
  • Take over (mm)
    160
    160
  • Area (unit)
    <80m²
    <120m²
